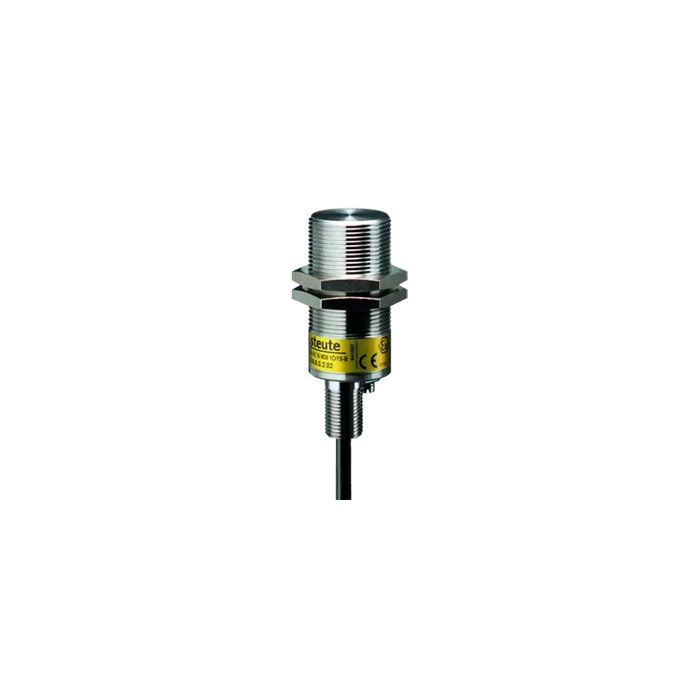

ATEX Magnetic Sensor Coded (Magnet not included)
(ExRCSiM30101S-B-IP69K-NIRO-1M(1186818))
£470.00
An explosion proof magnetically operated reed switch housed in an M30 threaded stainless steel body. Switch will only operate by proximity to a matching coded magnet. Overide by an ordinary magnet is therefore prevented making this device suitable for safety applictions. The reed switches are internally limited by a 20 ohm resistor to ensure contacts cannot be overloaded. Magnets supplied separately. M16 mounting thread also available.1 Metre cable fitted.
ATEX CODED MAGNETIC SWITCH STAINLESS STEEL
| Manufacturers Part Number | ExRCSiM30101S-B-IP69K-NIRO-1M(1186818) |
|---|---|
| Magnetic Switch Type | Magnetic Switch Safety with Coded Magnet |
| Application Area | Hazardous Area Atex |
| Contact Configuration | 1N/O + 1N/C |
| Current Rating | Unknown |
| Coil or Supply Voltage | 30Vdc |
| Connection | Cable 1M PVC |
| Contact Material | Unknown |
| Sealing | IP69K |
| Housing Material | Stainless Steel 316 |
| Catalogue Page | Catalogue pdf, prices not current. |
| Pack Unit | EACH |
| Manufacturer | STEUTE |
| Price | 470 |
