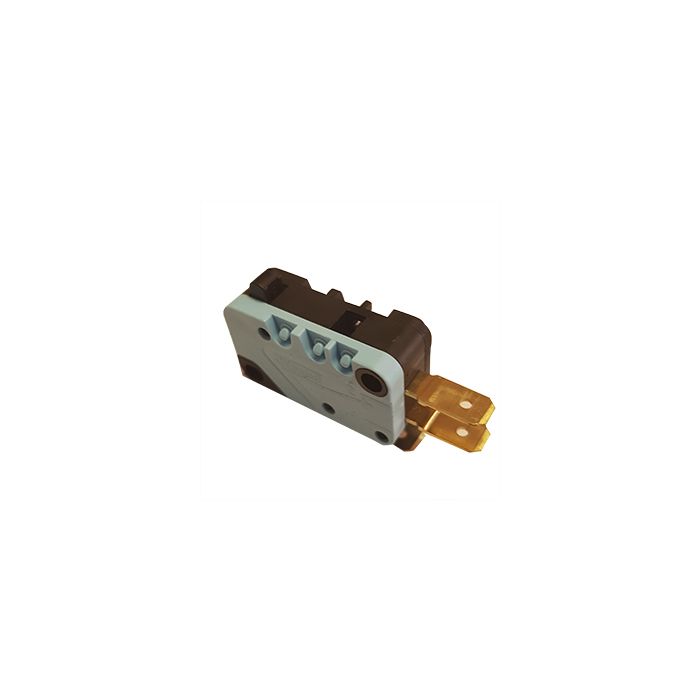

Crouzet 'V3' Miniature Microswitches 4.8mm Terminals

(83 161 304)
£2.40
16 In stock
SKU
3265446
An industry standard V3 miniature microswitch with silver nickel or silver nickel gold plated contacts for switching down to 1 mA at 4 VDC, featuring snap-on levers which
can be factory fitted for volume customers, (consult sales for part numbers). Available in a wide range of different terminals to suit soldering applications, push-on connectors or screw connections. An optional high force force switch and a very low force switch are
also available. All equipped with a standard actuator.


The 83 161 202 is a high current microswitch with a nominal 20A and thermal 22A rating that is best suited for AC inductive loads to 380Vac.Offers up to 4 times rated electrical life compared to standard microswitch for AC inductive loads, see 83 161 2 operating curve on data sheet for details.




The 83 160 601 or 83 160 6 SP3697
is a High voltage 110VDC switching Microswitch incorporating magnetic blowouts.Rated 5A at 110Vdc.
This switch does not accept the clip on actuators of the 81 161 range and must be ordered with a factory fitted actuator.



Crouzet Microswitch brand
V3 STYLE MIN MSWITCH W3 TERM 4.8MM
More Information
Manufacturers Part Number 83 161 304
Microswitch Type Minature V3/XG
Connection Pushon 4.8mm-W6
Lever Type/Length Plain Plunger
Operating Force Standard
Contact Configuration 1C/O
Sealing IP40
Catalogue Page Catalogue pdf, prices not current.
Technical Data1 83 161 16A to 22A Data Sheet
Technical Data2 83 160 110Vdc Microswitch Data
Pack Unit EACH
Manufacturer CROUZET
Price 2.4
