Switch Bodies (On) None Off One LED Green 12Vdc Battery Reset
Switching function brackets () indicates momentary/sprung return Sealing.
All switches are front panel sealed a standard , an additional panel gasket VPS can also be specified.
Led position can be top or bottom, an can be wired independently of the switch or linked internally to the switch function.
Carling technologies convention for on off switches is that when the bottom of the switch is pressed the switch is off and when the top is pushed the switch contacts make and the switch is considered on. The is the opposite to uk domestic light switches .Some customers prefer the uk convention and use upside down configurations and put the actuators on the wrong way round !

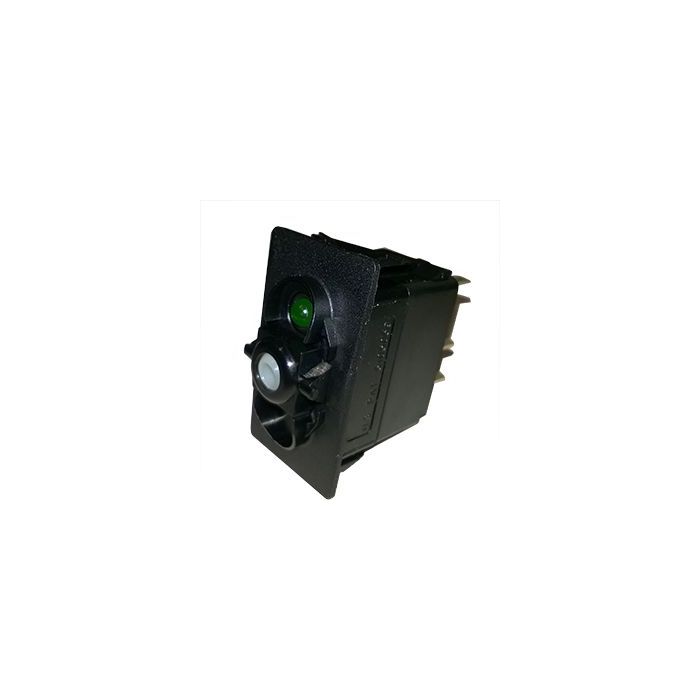

Switch Body Single Pole (On) None Off 1 Led Green 12Vdc No gasket 8 Terminal Base Lamp1 Independent.
Typical applications as a Battery Reset Switch when used with switch actuator/Top
our 9141169
| Manufacturers Part Number | V2D1AH0B-00000-000 |
|---|---|
| Rocker Switch Type | Switch Body Only |
| Rocker Switch Style | V Series |
| Switching Function-Circuit | SP (ON) NONE OFF |
| Rating Switches | 20A 12Vdc |
| Termination Switches | 8 Way Connector |
| Actuator Colour and Texture | N/R |
| Texture | N/R |
| Colour Actuator Lens | N/R |
| Legend | N/R |
| Illumination | Top LED Green Ind |
| Sealing | IP66, No Panel Gasket |
| Catalogue Page | Catalogue pdf, prices not current. |
| Pack Unit | EACH |
| Manufacturer | Carling Technologies |
| Price | 8.94 |
