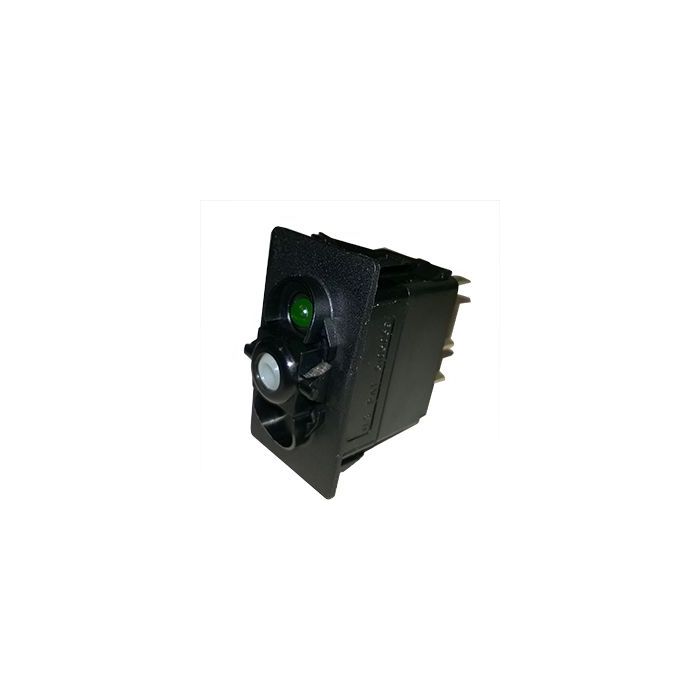

Switch Bodies Single Pole (On) Off (On) One LED Green 12Vdc

(VLD1AH0B-00000-000)
£12.70
230 In stock
SKU
9141119
A selection of switch bodies onto which switch actuators can be fitted. The models below have One Led so typically would be used in conjunction with an actuator with One Lens.

Switching function brackets () indicates momentary/sprung return Sealing.
All switches are front panel sealed a standard , an additional panel gasket VPS can also be specified.

Led position can be top or bottom, an can be wired independently of the switch or linked internally to the switch function.

Carling technologies convention for on off switches is that when the bottom of the switch is pressed the switch is off and when the top is pushed the switch contacts make and the switch is considered on. The is the opposite to uk domestic light switches .Some customers prefer the uk convention and use upside down configurations and put the actuators on the wrong way round !

Switch Body Double Pole (On) Off (On) 1 Led Green 12Vdc Switch RKR 2P (On) Off (On) 12V Grn
More Information
Manufacturers Part Number VLD1AH0B-00000-000
Rocker Switch Type Switch Body Only
Rocker Switch Style V Series
Switching Function-Circuit SP (ON) OFF (ON)
Rating Switches 20A 12Vdc
Termination Switches 8 Way Connector
Actuator Colour and Texture N/R
Texture N/R
Colour Actuator Lens N/R
Legend N/R
Illumination Top LED Green Ind
Sealing IP66, No Panel Gasket
Catalogue Page Catalogue pdf, prices not current.
Pack Unit EACH
Manufacturer Carling Technologies
Price 12.7
