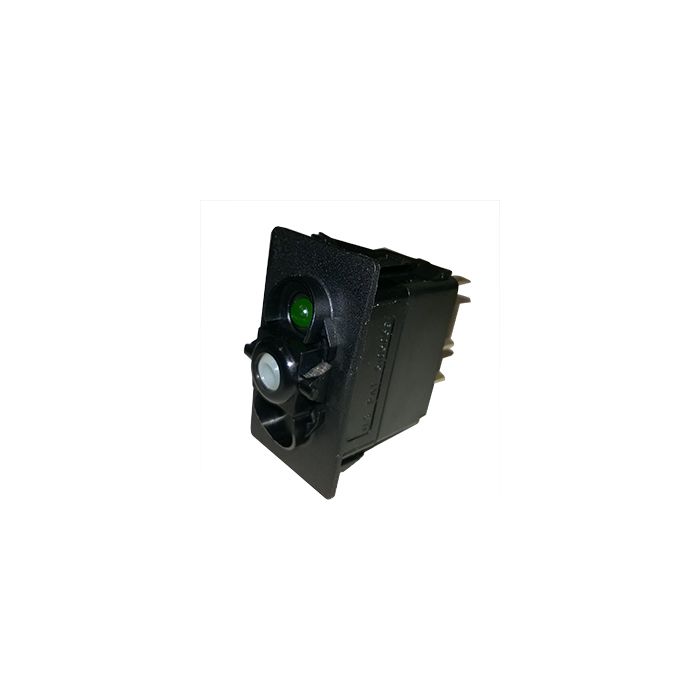

Switch Bodies J1 Hazard One Led Red 24Vdc

(J1B2UV0B-00000-000)
£19.14
10 In stock
SKU
9141198
A selection of switch bodies onto which switch actuators can be fitted. The models below have One Led so typically would be used in conjunction with an actuator with One Lens.

Switching function brackets () indicates momentary/sprung return Sealing.
All switches are front panel sealed a standard , an additional panel gasket VPS can also be specified.

Led position can be top or bottom, an can be wired independently of the switch or linked internally to the switch function.

Carling technologies convention for on off switches is that when the bottom of the switch is pressed the switch is off and when the top is pushed the switch contacts make and the switch is considered on. The is the opposite to uk domestic light switches .Some customers prefer the uk convention and use upside down configurations and put the actuators on the wrong way round !

Switch Body 1 Red Led 12V? tba
More Information
Manufacturers Part Number J1B2UV0B-00000-000
Rocker Switch Type Switch Body Only
Rocker Switch Style V Series
Switching Function-Circuit J1 Hazard
Rating Switches 15A 24Vdc
Termination Switches 10 Way Connector
Actuator Colour and Texture N/R
Texture N/R
Colour Actuator Lens N/R
Legend N/R
Illumination Top LED Red Down
Sealing IP66, No Panel Gasket
Catalogue Page Catalogue pdf, prices not current.
Pack Unit EACH
Manufacturer Carling Technologies
Price 19.14
