Locking Guard Switch 'Spartan', 1200N Force

(440G-S36005)
£374.42
10 In stock
SKU
5106543

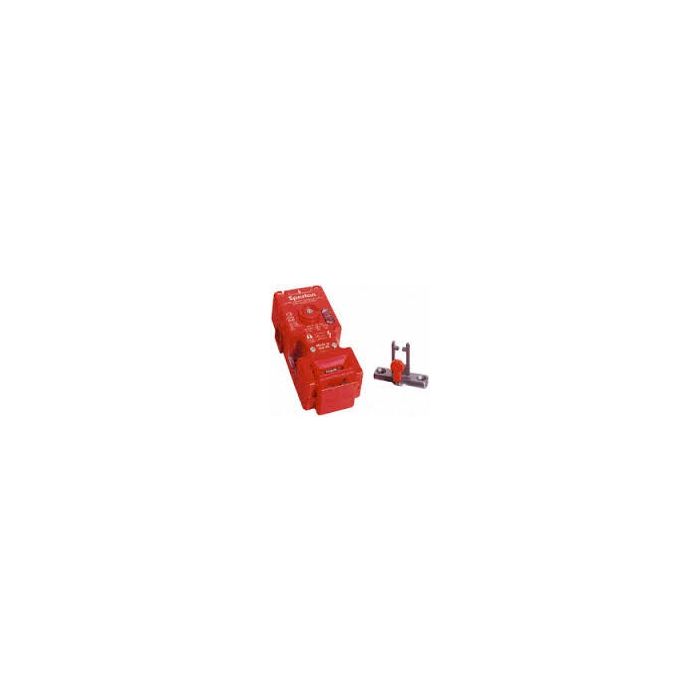

The Spartan is a small tongue operated interlocking safety switch which locks the guard closed until machine power is isolated and ensures it remains isolated whilst the guard is open. Designed with two entry slots and a rotating head to give four actuator entry positions, a blanking plug is also provided for the unused slot. The guard may only be opened when a signal is applied to the internal solenoid, which releases the
locking mechanism, however in the event of a total power failure, an
emergency override key is available as a optional extra, Note: the key
should only be available to authorised personnel. The Spartan is ideal for machines which do not stop immediately or when premature interruption of the machine could cause damage. A catch kit with actuator alignment is supplied to relieve stress on the locking solenoid and to protect the
unit from actuator damage due to poor guard alignment. The Spartan is
available with 2 N/C safety contacts and 1 N/O auxiliary contact in 3 different voltages.
SPARTAN 1 230V 2N/C+1N/O 1XM20
More Information
Manufacturers Part Number 440G-S36005
Safety Switch Type Solenoid Locking
Application Area General Use
Safety Switch Actuator Standard
Contact Configuration 2N/C + 1N/O
Current Rating 2A
Connection M20
Coil or Supply Voltage 230Vac
Housing Material ABS
Catalogue Page Catalogue pdf, prices not current.
Technical Data1 Guardmaster Spartan Data Sheet
Technical Data2 Guardmaster Spartan Manual
Pack Unit EACH
Manufacturer GUARDMASTER
Price 374.42
