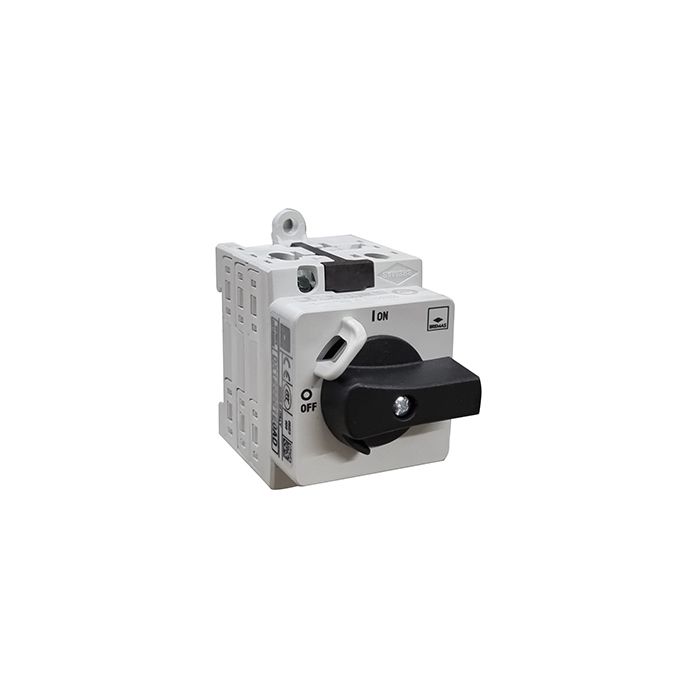

Solar PV DC Disconnect Switch 1000Vdc 20A 2 Pole Din Rail Padlockable

64 In stock

*** Padlockable in Off position***


1000Vdc Disconnect Switch -Isolator for Solar PV String Isolation.

1+1 Pole Configuration.

PV1 rated 20A at 1000Vdc or 40A at 700Vdc

Thermal Current 50A.

New generation design givng the most powerful Isolator on the market measuring only 45mm wide, allowing direct DIN Rail mounting use inside DDN enclosures.

Multiple approvals and reassurance of European design and quality from Bremas Ersce, Europes leading Isolator manufacturer with over 50 years of experience.


Solar PV DC Disconnect Switch 1000Vdc 20A 2 Pole Din Rail DDN Version Head Up Screws RND Handle Padlockable Padlockable
More Information
Manufacturers Part Number DM10020-1E0AD-RLE-X
Contact Configuration 1+1 ( Isolating +V and -V ) 2 Pole
Mounting Method Din Rail
Housing Size and Style 45mm Wide DDN
Current Rating 20A
Housing Material ABS
Enclosure Size 45mm
Sealing IP66
Technical Data1 Bremas Compact Isolator Data
Pack Unit EACH
Manufacturer BREMAS ERSCE
Price 39.62
