Relay Hermetically Sealed 4PCO 3A 110Vdc Magencraft SE Relays

We stock and sell a wide range of Hermetically sealed relays from the Schneider Electric relay brand,formerly Magnecraft. Magnecraft purchased the Potter and Brumfield manufacturing line back in 2003 and their relays are interchangeable with Potter and Brumfield KHS range. Please note some rationalization has taken place. The H10 material has Gold flash allowing it to be used to replace both P&B D11 and D13 contact materials. The H21 contact is a Silver Tin oxide alloy ,rather than Silver Cadmium as was the original D12 material, allowing the relay to be ROHS compliant. We can supply sockets with clip or diode or MOV protection modules

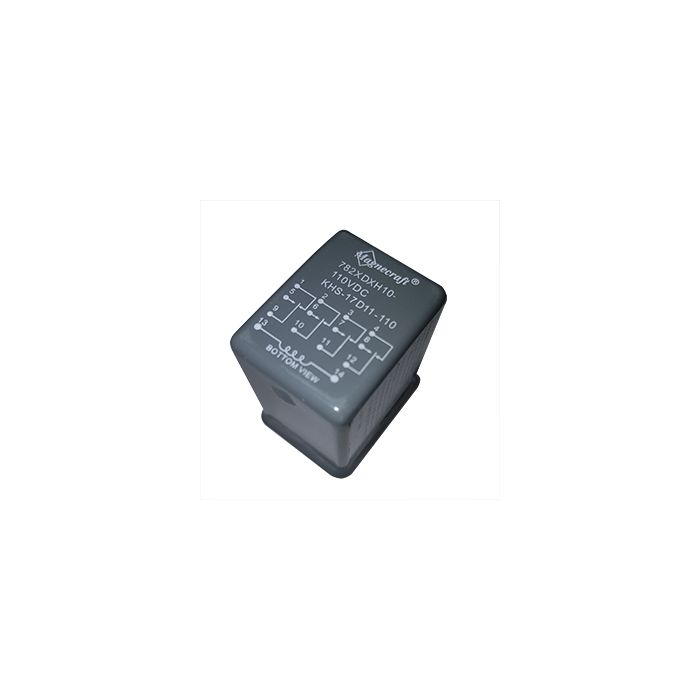

Schneider Electric Relays brand , formerly Magnecraft  Relays   782XDXH10-110D/KHS17D11-110

Specifications

Contact arrangement         Four pole changeover
Contact material            Ag/Au       AgAnO2        AuAgNi
                            (H10)      ( H21)           (H37)
Contact rating at 120Vac    3A           5A           2A
Coil resistance. ohm        160 (12V), 650 (24V), 26K (48V), 11K (110V)
Operate / release time      13ms / 6ms
Nominal coil power          0.9 W dc, 1.2 VA at 50 Hz
Mechanical switching life   106
Dielectric strength         0.5kV ac (coil-contact)
Temperature                 -45°C to + 70°C
Approvals                   UL, CSA
H = 32.5, W = 21.8, D = 28.1

Relay socket use 70-782D14-1
Hold down clip - use part no 16-1342

Din socket that accepts led modules see GZT4  stock no 4650003
Hold down clip 20C29710
