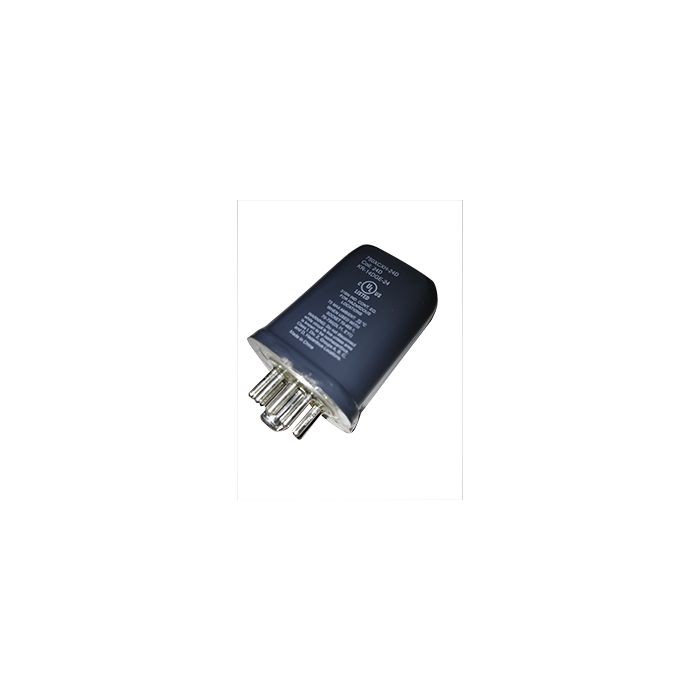

Hermetically Sealed Relay 8 Pin 2PCO 24Vdc 10A

Hermetically sealed relay capable of switching 10A for use in hazardous locations (class 1 division 2, groups A,B,C,D).Available in 2pco or 3pco in industry standard 8 and 11 pin termination that mounts onto DIN rail sockets. Potter&Brumfield/Magnecraft Schneider Electric Relays UK.

750XBXH-24D/KR11DEG-24

Specifications

Contact arrangement         2 or 3 pole changeover
Contact material            Silver cadmium oxide
Contact rating              10A at 240V ac
Coil resistance             472 ohm
Operate / release time      15ms / 10ms
Nominal coil power          1.2 W dc
Mechanical switching life   107
Dielectric strength         1.5kV ac (coil-contact)
Temperature                 -45°C to + 70°C
Approvals                   UL, CSA
H = 52 W = 39 D = 33

Scneider Electric
Din Socket 70-750D11-11 and clip 16-1335

P&B
DIN socket - use part no. 27E123
Hold down clip - use part no 20C176

.
