Push Button Switch 1C/O Momentary Red Illuminated Flange Mounting Battery Symbol
(TS.111.RT22)
£31.03
Push Button Switch 1C/O Momentary Red Illuminated Flange Mounting Battery Symbol

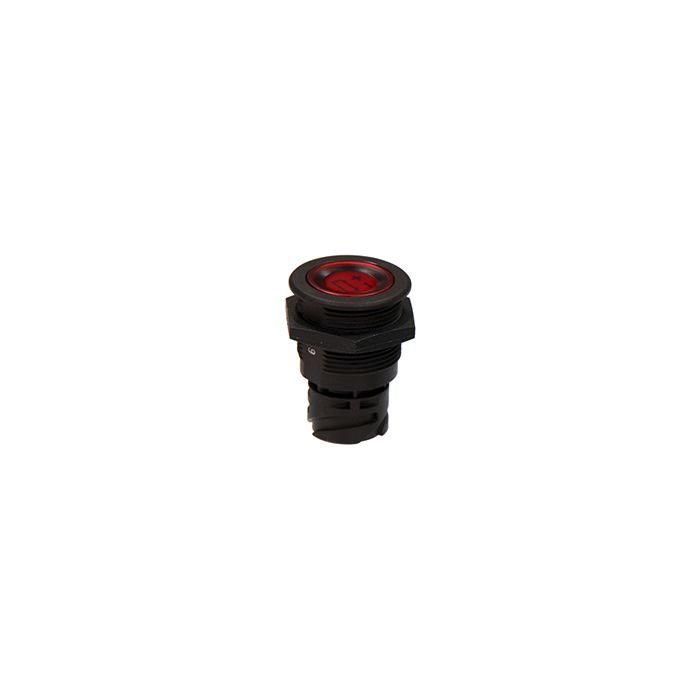

A high quality automotive engine pushbutton with battery symbol, giving a high level of sealing allowing IP67/IP69K rating when used with a mating 6 Pol DIN 72585-2 conduit connector. Kissling Brand. Picture one shows symbol, this part is flange mounted as per picture 2
Push Button Switch 1C/O Momentary Red Illuminated Flange Mounting Battery Symbol
| Manufacturers Part Number | TS.111.RT22 |
|---|---|
| Push Button Type | Automotive Sealed |
| Head Style | Momentary Operator Non IIIuminated |
| Indication | Illuminated |
| Contact Configuration | 1C/O |
| Current Rating | 5A |
| Termination Switches | 7 Pin Automotive Connector |
| Actuator Colour and Texture | Red |
| Sealing | IP69K |
| Coil or Supply Voltage | 12-30Vdc |
| Catalogue Page | Catalogue pdf, prices not current. |
| Pack Unit | EACH |
| Manufacturer | KISSLING ELEKTROTCHNIK |
| Price | 31.03 |
