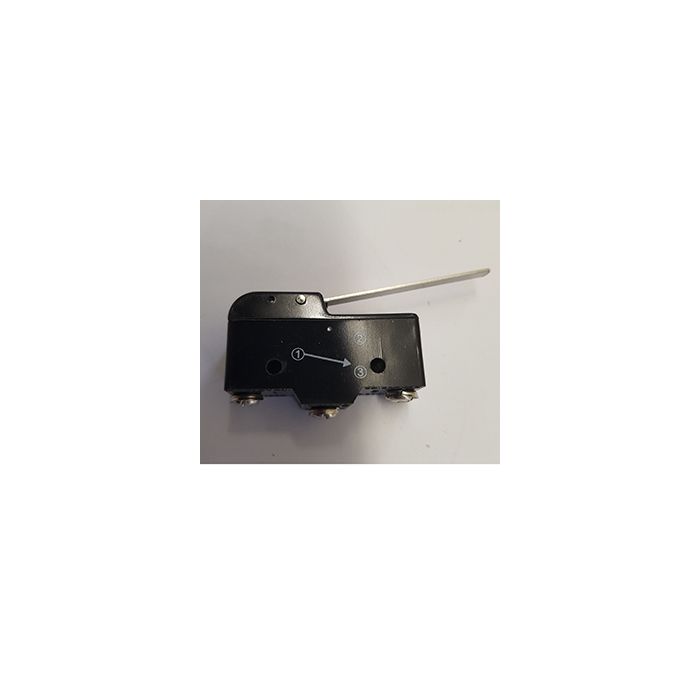

Standard Microswitch Reverse Action, 15 Amp reverse acting 54mm leverain lever
(MTCL-25R)
£11.29
1 In stock
SKU
2161071
A single pole, snap action, changeover microswitch incorporating a beryllium copper trident spring mechanism, silver contacts and accessible screw terminals. Featuring a reverse action 52.8mm roller lever actuator to provide increased overtravel. UL, CSA approved.
Microswitch T Series reverse acting 54mm lever
15A 250Vac Sscrew Terminals
| Manufacturers Part Number | MTCL-25R |
|---|---|
| Microswitch Type | Standard Size CT/PN Styles |
| Connection | Screw Terminals |
| Lever Type/Length | Plain 56mm |
| Operating Force | Standard |
| Contact Configuration | 1C/O |
| Sealing | IP40 |
| Catalogue Page | Catalogue pdf, prices not current. |

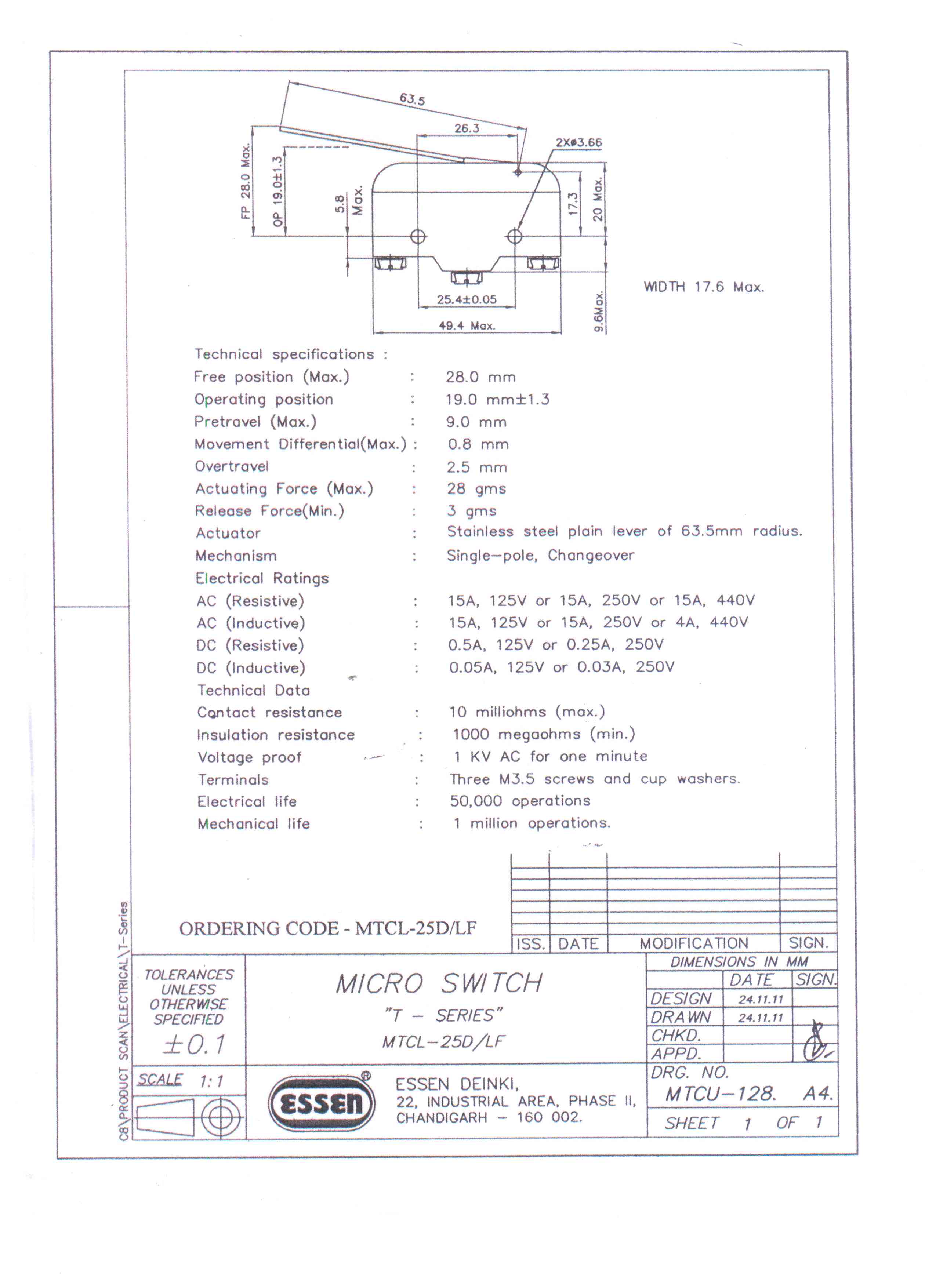

| Technical Data1 | MTCL-25D Standard Lever Length Data Sheet |

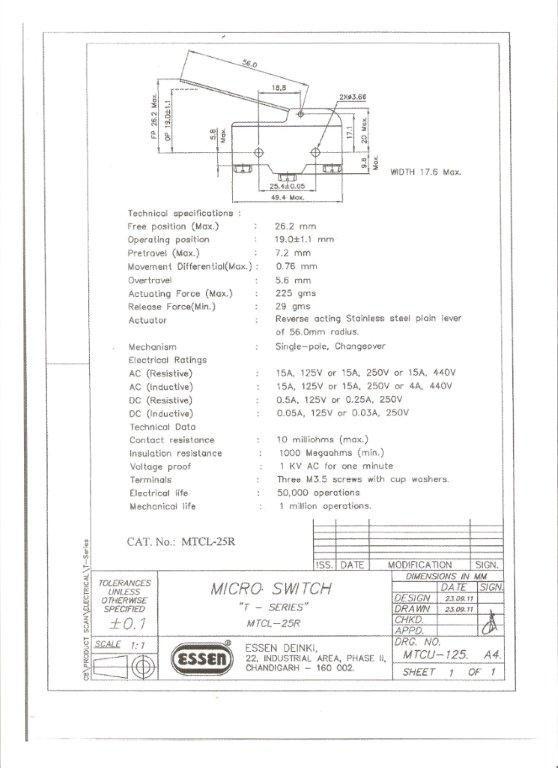

| Technical Data2 | MTCL-25R Reverse Acting Data Sheet |
| Pack Unit | EACH |
| Manufacturer | ESSEN DEINKI |
| Price | 11.29 |
