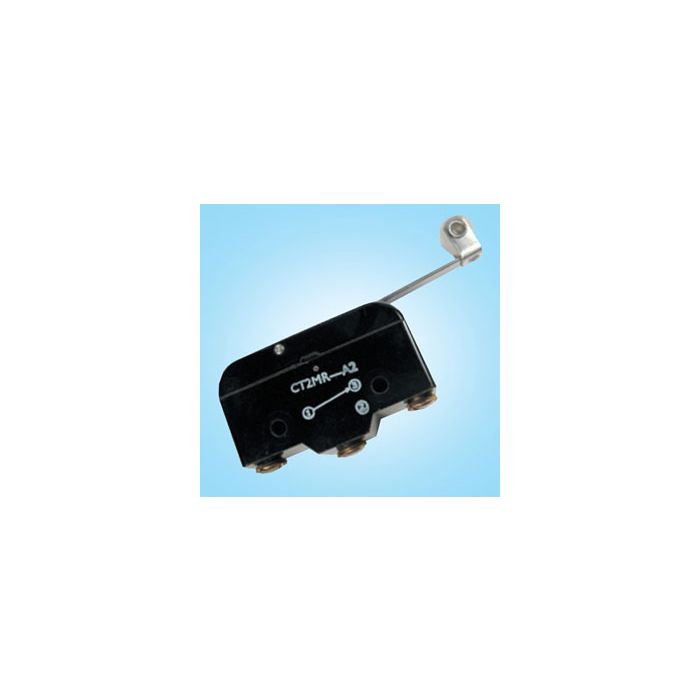

Standard Microswitch Reverse Action, 15 Amp
(CT2MRA2UL)
£19.61
A single pole, snap action, changeover microswitch incorporating a beryllium copper trident spring mechanism, silver contacts and accessible screw terminals. Featuring a reverse action 52.8mm roller lever actuator to provide increased overtravel. UL, CSA approved.
MICROSWITCH SPCO ROLLER LEVER OBSOELTE OFFER ESSEN MTCR-26R
| Manufacturers Part Number | CT2MRA2UL |
|---|---|
| Microswitch Type | Standard Size CT/PN Styles |
| Connection | Screw Terminals |
| Lever Type/Length | Roller 52.8mm |
| Operating Force | Standard |
| Contact Configuration | 1C/O |
| Sealing | IP40 |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | MTCL-25D Standard Lever Length Data Sheet |
| Technical Data2 | MTCL-25R Reverse Acting Data Sheet |
| Pack Unit | EACH |
| Manufacturer | SAIA BURGESS JOHNSON ELECTRIC |
| Price | 19.61 |
