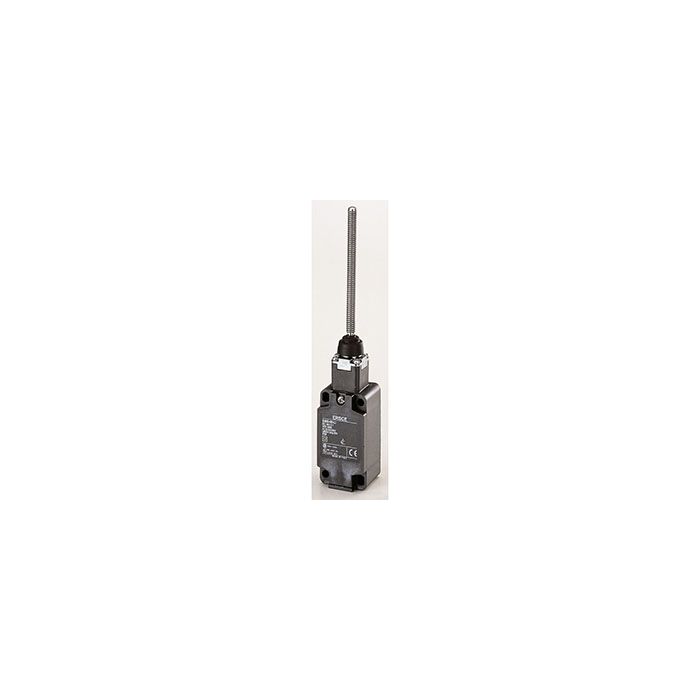

Wobble Stick Limit Switch E400
(E400-00-LM)
£38.41
5 In stock
SKU
9711021
The E400 series is a very robust limit switch designed to meet standard EN50041 , with 4 fixing holes on 30mm centres. Available with metal or plastic body and with various contacts arrangements and conduit entries.
The standard 1N/C & 1N/O contact is unique in combining the positive safety action with snap action in one block extending contact life. Bremas Esrce branded product.
Note crouzet 83 861 series which was manufactured by Ersce for Crouzet will be supplied as Ersce branded product once stocks exhausted.
The standard 1N/C & 1N/O contact is unique in combining the positive safety action with snap action in one block extending contact life. Bremas Esrce branded product.
Note crouzet 83 861 series which was manufactured by Ersce for Crouzet will be supplied as Ersce branded product once stocks exhausted.
LIMIT SWITCH LARGE FLEXIBLE ROD 1N/O & 1N/C SNAP ACTION SAFETY METAL BODY M20 METAL BODY M20 WOBBLE STICK
| Manufacturers Part Number | E400-00-LM |
|---|---|
| Application Area | General Use |
| Limit Switch Type | EN50041 4 Fixing Holes 30mmx60mm |
| Contact Configuration | 1N/O + 1N/C Snap Action Safety |
| Current Rating | 10A |
| Actuator Type | Wobble Stick |
| Sealing | IP66 |
| Housing Material | Metal Body , Metal Head |
| Connection | Pg13.5 |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Ersce E400 Data Sheet p317 |
| Pack Unit | EACH |
| Manufacturer | BREMAS ERSCE |
| Price | 38.41 |
