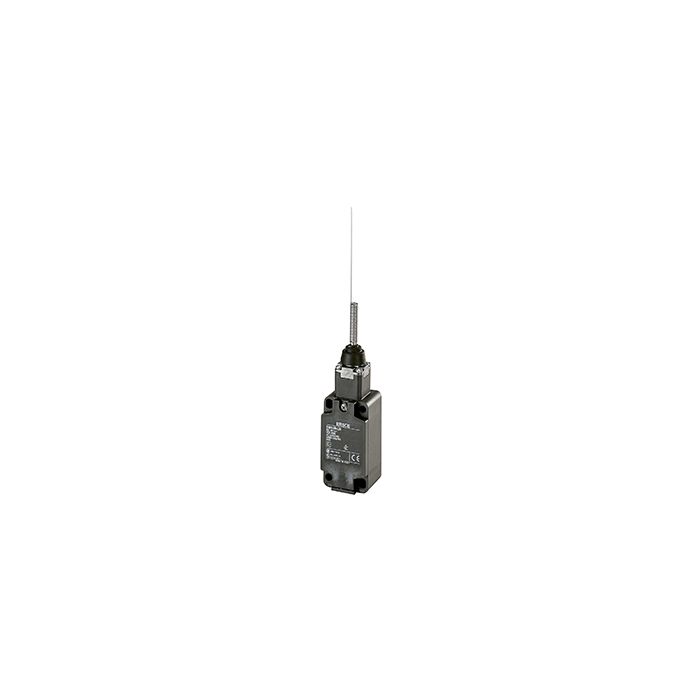

Cats Whisker Limit Switch E400
(E400-00-LSM)
£33.10
2 In stock
SKU
9711152
The E400 series is a very robust limit switch designed to meet standard EN50041 , with 4 fixing holes on 30mm centres. Available with metal or plastic body and with various contacts arrangements and conduit entries.
The standard 1N/C & 1N/O contact is unique in combining the positive safety action with snap action in one block extending contact life. Bremas Esrce branded product.
The standard 1N/C & 1N/O contact is unique in combining the positive safety action with snap action in one block extending contact life. Bremas Esrce branded product.
LIMIT SWITCH LARGE CATS WHISKER 1N/O & 1N/C SNAP ACTION SAFETY METAL BODY PG13.5 METAL BODY CATS WHISKER
| Manufacturers Part Number | E400-00-LSM |
|---|---|
| Application Area | General Use |
| Limit Switch Type | EN50041 4 Fixing Holes 30mmx60mm |
| Contact Configuration | 1N/O + 1N/C Snap Action with Safety |
| Current Rating | 10A |
| Actuator Type | Cats Whisker |
| Sealing | IP66 |
| Housing Material | Metal Body , Metal Head |
| Connection | Pg13.5 |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Ersce E400 Data Sheet p319 |
| Pack Unit | EACH |
| Manufacturer | BREMAS ERSCE |
| Price | 33.1 |
