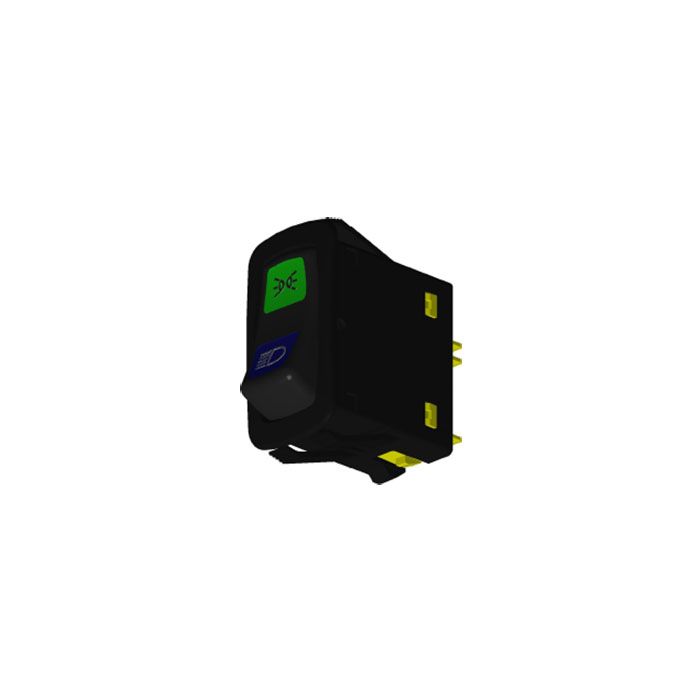

L Series Headlight-Side Light Progressive Circuit 2x 12Vdc Bulbs Independent

Headlight-Side Lights Combo, OFF, A ON , A&B ON

This switch has a progressive circuit ,which can be wired so that:

Postion (3) is OFF.

Position (2) is Side Lights ON

Position (1) is Side Lights and Headlights both ON.

The legends are Orienation Type 3 which means they are printed upside down.

This means when you insert the switch into the panel upside down to the manufacturers way of thinking,

position 1 (A&B ON), becomes the bottom and the legends look the right way round.

This is so the switch is ON when the bottom is depressed (UK standard), rather than the USA standard of ON when the top is depressed.

May be used as drop in replacements for obsolete Durite Modular Rocker switches with 0-787-12, or 0-787-13 bodies , with 22x44mm hole cutout.
