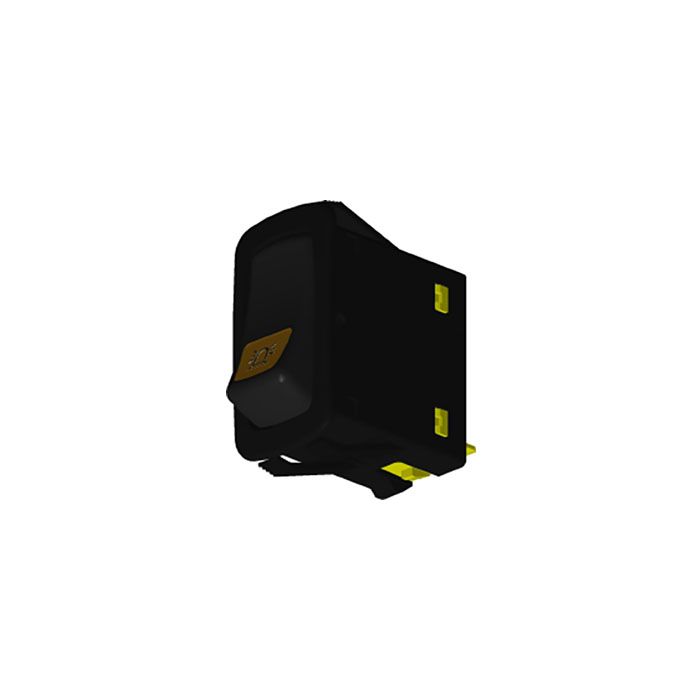

L Series SP On-None-Off Beacon 12Vdc Bulb
(L11D1A601-ABZMT-300)
£11.35
Beacon Legend
Beacon Legend
On-None Off
Postion (3) is OFF.
Position (1) is ON.
The legends are Orienation Type 3 which means they are printed upside down.
This means when you insert the switch into the panel upside down to the manufacturers way of thinking,
Position 1 (ON), becomes the bottom and the legends look the right way round.
This is so the switch is ON when the bottom is depressed (UK standard), rather than the USA standard of ON when the top is depressed.
May be used as drop in replacements for obsolete Durite Modular Rocker switches with 0-780-11 body , with 22x44mm hole cutout.
| Manufacturers Part Number | L11D1A601-ABZMT-300 |
|---|---|
| Rocker Switch Type | Switch Complete with Actuator/Top |
| Rocker Switch Style | L Series |
| Switching Function-Circuit | SP ON NONE OFF |
| Rating Switches | 20A 12Vdc |
| Termination Switches | 0.250 (6.4mm) Tab or Connector |
| Actuator Colour and Texture | Black |
| Texture | Hard |
| Colour Actuator Lens | Amber Transluscent Square Top |
| Legend | Beacon Top Type 3 |
| Illumination | Bulb Top Independent |
| Sealing | IP67 |
| Pack Unit | EACH |
| Manufacturer | Carling Technologies |
| Price | 11.35 |
