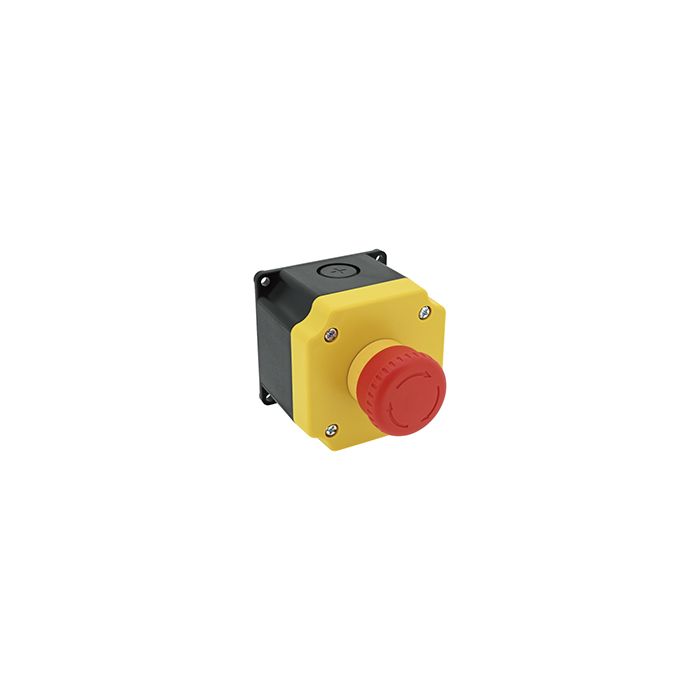

E-Stop Boxed, with 2 N/C Contacts Screw Terms M20 Conduit Entry
(YB1W-YW1B-V4E02R-Y0)
£20.54
E-Stop Boxed, with 2 N/C Contacts Screw Terminals type Surface Mount or Rear Mount M4 on 50mm centres
Note , unit is both Pull or twist to reset.
Note idec products are also available with pushin terminals .
E-Stop Boxed 40mm Mushromm head 2 N/C Screw Terminals
Front Mount or Rear Mount via M4 on 50mm centres
Twist or Pull to reset
| Manufacturers Part Number | YB1W-YW1B-V4E02R-Y0 |
|---|---|
| E-Stop Type | E Stop Boxed |
| Contact Configuration | 2N/C |
| E Stop Head Style | Twist Reset /Pull 40mm |
| Application Area | General Use |
| Current Rating | 10A |
| Connection | M20 |
| Housing Material | ABS |
| Sealing | IP65 |
| Technical Data1 | Idec Boxed E Stop data sheet |
| Pack Unit | EACH |
| Manufacturer | IDEC |
| Price | 20.54 |
