1 String DC Isolator 50A Thermal -MC4 20A@1000Vdc, 40A@700Vdc, Black Handle
(IBM10020120ABMC)
£138.22

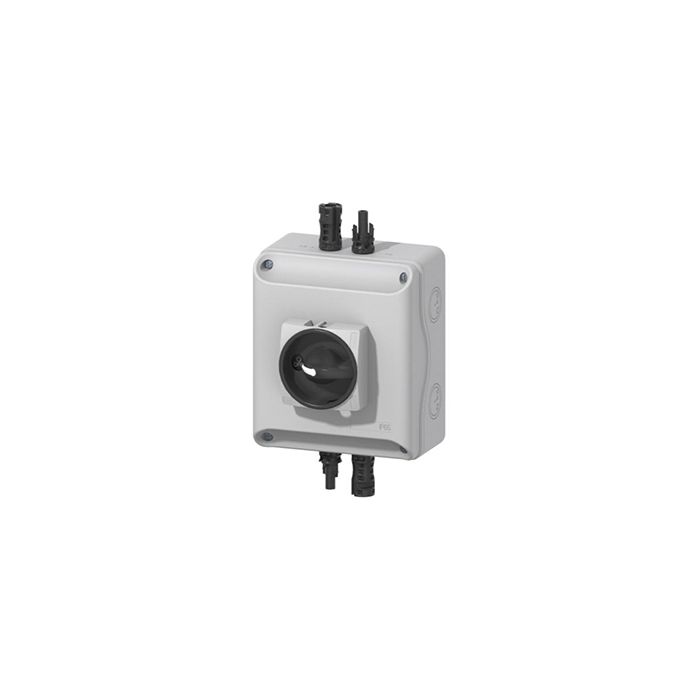

DC Isolator Switch-MC4 Enclosed IP65, Lid Interlocked 20A@1000Vdc, 2 Poles, RKU6 Black Handle and Grey Plate Padlockable
DC Isolator Switch-MC4 Enclosed IP65, Lid Interlocked 20A@1000Vdc, 40A 700Vdc, 2 Poles, RKU6 Black Handle and Grey Plate Padlockable
50A Thermal rating.
PV1 and PV2 Rated, IEC EN 60947 certified.
*** No requirement to series or parallel contacts to achieve these ratings.***
**Consult sales for quantity discounts, and recommended wiring instructions **
| Manufacturers Part Number | IBM10020120ABMC |
|---|---|
| Contact Configuration | 1+1 ( Isolating +V and -V ) 2 Pole |
| Mounting Method | Enclosed Lid Interlocked |
| Housing Size and Style | Square with MC4 Connectors |
| Current Rating | 20A |
| Switching Voltage | 1000Vdc |
| Housing Material | ABS |
| Handle Type | Black -Grey Plate Padlockable |
| Enclosure Size | 140x165x80.5mm B140 |
| Sealing | IP65 |
| Technical Data1 | IBM10020120ABMC Data Sheet |
| Pack Unit | EACH |
| Manufacturer | BREMAS ERSCE |
| Price | 138.22 |
