Contactor DC Side Mount 400A at 120Vdc SPST-NO M8 Stud 24Vdc Flying Leads 390mm
(DLVC400-4061-S8-1024-R1)
£85.00
Contactor DC Side Mount 400A at 120Vdc SPST-NO M8 Stud 24Vdc Flying Leads 390mm
Contactor DC Side Mount Terminals 400A at 120Vdc SPST-NO M8 Stud 24Vdc Flying Leads 390mm.
This product is also available in bottom mount terminals and auxilliary contact.

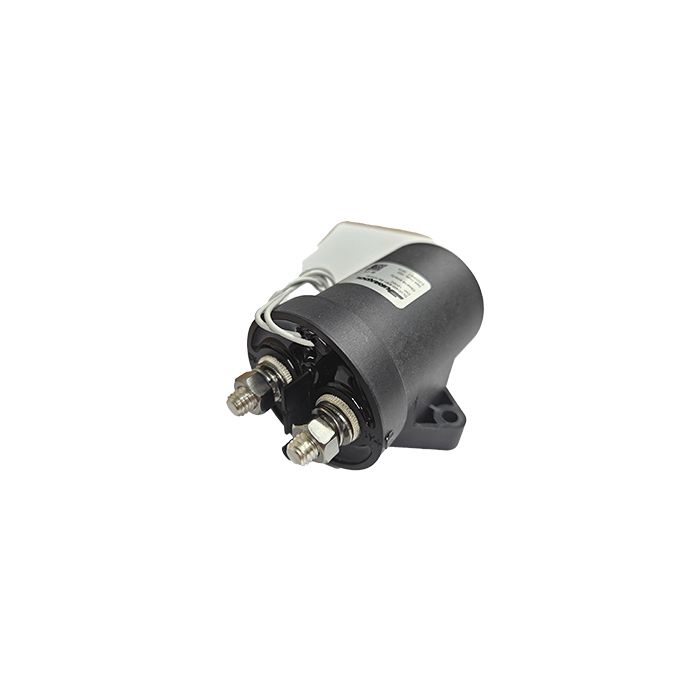

DLVC400-4061-S8-1024-R1 pictured Side Mount
Optionally, examples:
DVLC400-4061-B8-1024-R1 Bottom Mount
DVLC400-4071-S8-R1 Side Mount with auxilliary
DVLC400-4071-B8-R1 Bottom Mount with auxilliary
| Manufacturers Part Number | DLVC400-4061-S8-1024-R1 |
|---|---|
| DC Contactor Type | Standard |
| Coil or Supply Voltage | 24Vdc |
| Current Rating | 400A |
| Contact Configuration | 1N/O |
| Sealing | IP67 |
| Housing Material | ABS |
| Mounting Method | Flange Side Mounting |
| Switching Voltage | 110Vdc |
| Coil Supression | None |
| Connection | Flying lead 390mm |
| Technical Data1 | Durakool DLVC 400 data Sheet |
| Pack Unit | EACH |
| Manufacturer | DURAKOOL RELAYS |
| Price | 85 |
