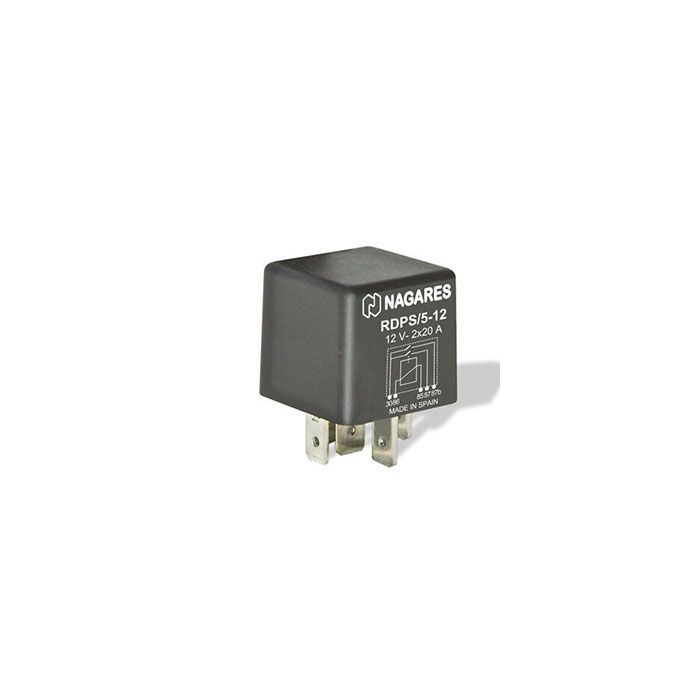

Nagares RDPS 2x20A 12Vdc Double Contact
(RDPS/5-12 (Mahle MR 14))
£4.10
79 In stock
SKU
4751040
General purpose automotive relay from Nagares-Mahle aftermarket.
This model has 2 Normally Open Outputs , rated at 2x20A at 12Vdc
Available options include plugin , with or without plastic or metal bracket, normally open or change over contacts , with various coil protections such as resisor or diode.
Ratings are 40A/15A normally open/normally closed contact at 12Vdc or 22A/10A at 24Vdc.
Note most automotive cube relays are now standardized on the type B pinout. Type A have the pins in different orientation.Take care when plugging into existing harness.
AUTOMOTIVE RELAY 12VDC 2X20A DOUBLE N/O PLUGIN N/O DOUBLE CONT&O/PUT NO/BRACK
| Manufacturers Part Number | RDPS/5-12 (Mahle MR 14) |
|---|---|
| Relay Type | Mini ISO 40A/30A |
| Mounting Method | Plugin |
| Coil or Supply Voltage | 12Vdc |
| Contact Configuration | 2N/O |
| Sealing | IP40 |
| Current Rating | 20A |
| Coil Supression | None |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Nagares RLP Relay Data Sheet |
| Technical Data2 | Nagares RLPA Relay Data Sheet |
| Pack Unit | EACH |
| Manufacturer | MAHLE NAGARES |
| Price | 4.1 |
