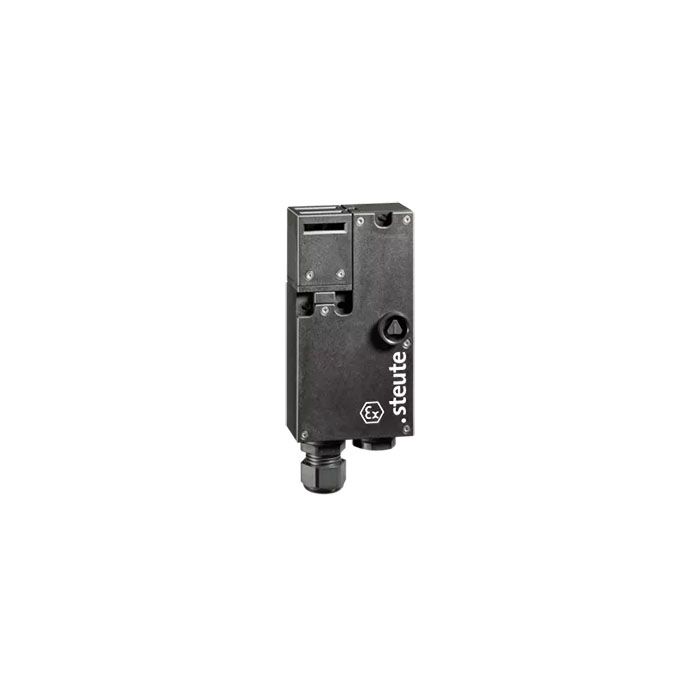

Atex Solenoid Interlock Spring to Lock IP64
(Ex STM 295 20/2S-R-FE(1186394))
£630.00
The steute EX STM 295 range of atex solenoid safety door interlocks include models with power to release (spring to lock),power to lock , optional manual release in case of power failure in emergency ,side entry actuation all with 2 N/C and 2 N/O safety contacts.
Choice of standard, angled or flexible actuator.
Choice of standard, angled or flexible actuator.
Atex Solenoid Interlock.Spring to lock.Manual release.2N/C+2N/O contacts
| Manufacturers Part Number | Ex STM 295 20/2S-R-FE(1186394) |
|---|---|
| Safety Switch Type | Solenoid Locking |
| Application Area | Hazardous Area Atex |
| Safety Switch Actuator | Actuator Not Included |
| Contact Configuration | 2N/C + 2N/O |
| Current Rating | 3A |
| Connection | M20 |
| Coil or Supply Voltage | 24Vdc |
| Housing Material | ABS |
| Catalogue Page | Catalogue pdf, prices not current. |
| Technical Data1 | Steute Ex STM 295 20/2S-R-FE |
| Technical Data2 | Steute Ex STM 295 20/2S-R |
| Technical Data3 | Steute RC2580 Data Sheet |
| Technical Data4 | Steute RC2580 Data Sheet |
| Technical Data5 | Steute RC2580 Data Sheet |
| Pack Unit | EACH |
| Manufacturer | STEUTE |
| Price | 630 |
