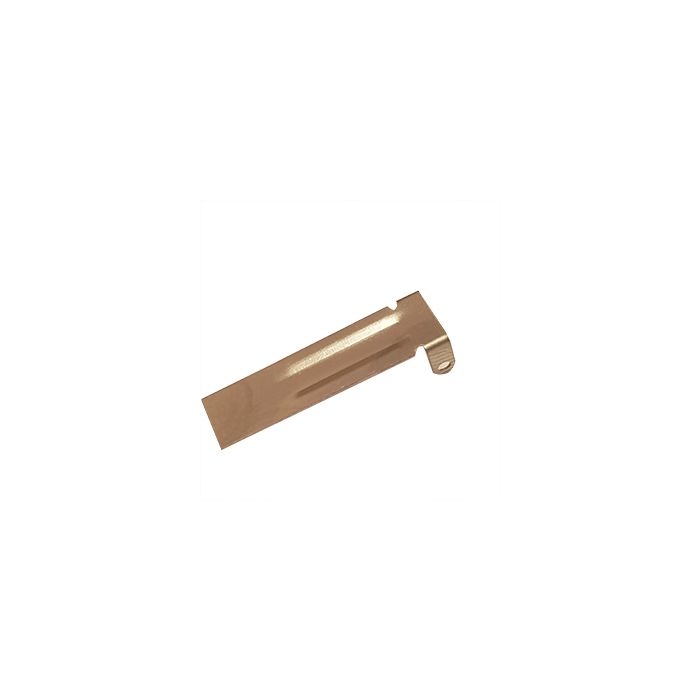

Crouzet 'V3' Actuator Plain 25.4mm

(70 507 524)
£1.50
Out of stock
Contact Sales for Delivery
SKU
3265176
An industry standard V3 miniature microswitch with silver nickel or silver nickel gold plated contacts for switching down to 1 mA at 4 VDC, featuring snap-on levers which
can be factory fitted for volume customers, (consult sales for part numbers). Available in a wide range of different terminals to suit soldering applications, push-on connectors or screw connections. An optional high force force switch and a very low force switch are
also available. All equipped with a standard actuator.


The 83 161 202 is a high current microswitch with a nominal 20A and thermal 22A rating that is best suited for AC inductive loads to 380Vac.Offers up to 4 times rated electrical life compared to standard microswitch for AC inductive loads, see 83 161 2 operating curve on data sheet for details.




The 83 160 601 or 83 160 6 SP3697
is a High voltage 110VDC switching Microswitch incorporating magnetic blowouts.Rated 5A at 110Vdc.
This switch does not accept the clip on actuators of the 81 161 range and must be ordered with a factory fitted actuator.



Crouzet Microswitch brand
ACTUATOR TYPE 161A R25.4
More Information
Manufacturers Part Number 70 507 524
Microswitch Type Lever for V3 Crouzet
Connection N/R
Lever Type/Length Plain 25.4mm
Operating Force N/R
Contact Configuration N/R
Sealing N/R
Catalogue Page Catalogue pdf, prices not current.
Technical Data1 83 161 16A to 22A Data Sheet
Technical Data2 83 160 110Vdc Microswitch Data
Pack Unit EACH
Manufacturer CROUZET
Price 1.5
