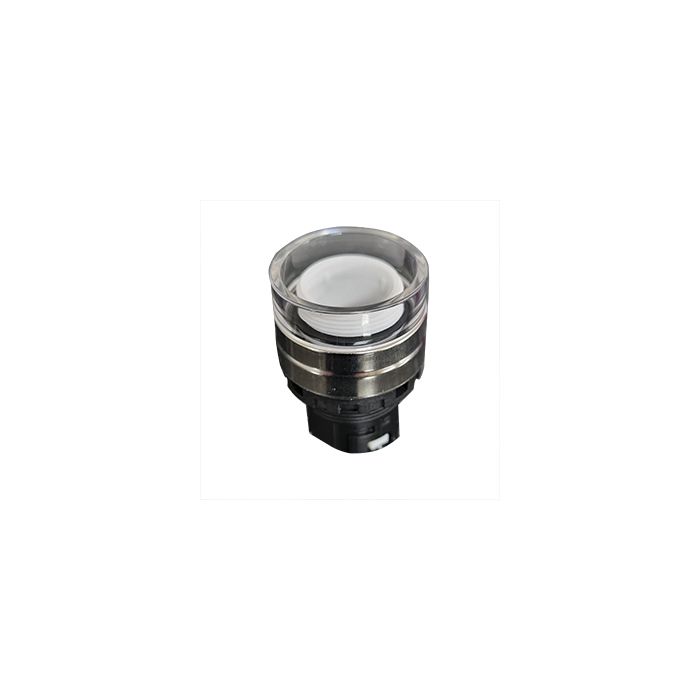

22mm momentary operator Metal Finsh bezel - with shroud - for illuminated switch assemblies

(YW4L-MF00)
£7.13
5 In stock
SKU
5505574

22mm momentary operator Metal Finsh bezel - with shroud - for illuminated switch assemblies



To make an illuminated switch you will need the following items to make a complete switch:

1 Shrouded Illuminable Operator YW1L-type (suffix AF00 Maintained, MF00 Momentary)

2 Contact Carrier YW-CN-N

3 Contact Blocks such as YW-E10 (N/O) or YW-E01 (N/C) with Screw Terminals or Pushin if prefer.

4 LED Holder YW-DE with Screw Terminals or Pushin if prefer

5 LED-White ,of required voltage e.g 24Vdc LSED-2PW

6 LED Diffuser YW9Z-P12 to create even spread of light, may also be used for silk screening of text.

7 Lens of desired colour and profile.e.g

Illuminated Extended Lens YW9Z-L12*colour



More Information
Manufacturers Part Number YW4L-MF00
Push Button Type 22.5mm IDEC YW Series
Head Style Shrouded Operator Momentary Illuminable
Indication Illuminable (LED Not Included)
Actuator Colour and Texture Chrome Bezel No Lens
Sealing IP65
Pack Unit EACH
Manufacturer IDEC
Price 7.13
